Model 1892 Deluxe Octagon

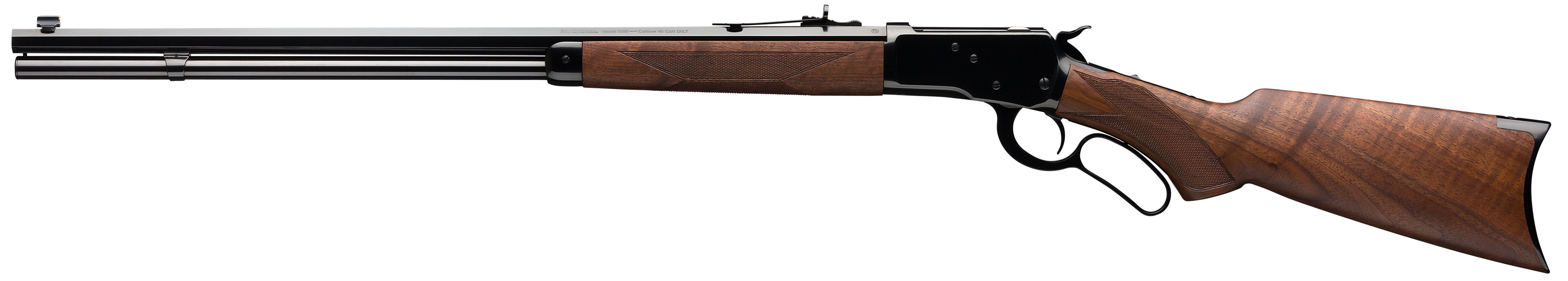

Winchester Model 1892 Deluxe Octagon - 534196141_D1

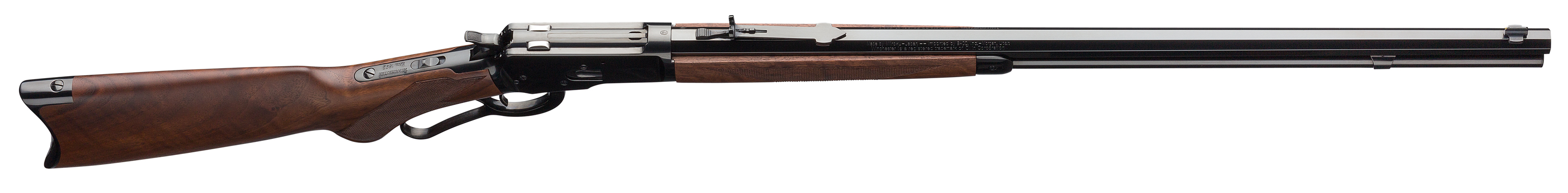

Winchester Model 1892 Deluxe Octagon - 534196141_D2

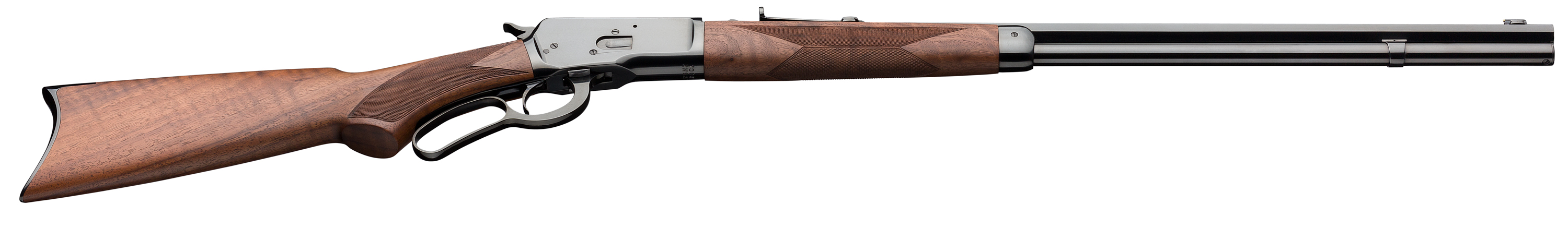

Winchester Model 1892 Deluxe Octagon - 534196141_D3

Discontinued

High grade lever-action Model 1892 rifle featuring gloss blue finished receiver, 24" octagon barrel, forearm cap, and crescent buttplate. Grade III/IV curved grip walnut stock, Marble Arms gold bead sight and buckhorn rear sight.

Overview

Nothing feels like a Model 1892. Smooth as butter. When Mr. John Browning created this rifle for Winchester you must wonder if anyone suspected that it would become the consummate ranch rifle, protecting livestock, and providing meals on the range. And did anyone know that over a century and a quarter later it would be the most appreciated Cowboy Action Shooting rifle ever? Own one today.

RECEIVER – Steel; Gloss blued finish
BARREL – 24” gloss blued; Octagon
ACTION – Lever-action; Tubular magazine
STOCK – Grade III/IV walnut; Curved grip
FEATURES – Crescent buttplate; Marble’s® gold bead front sight; Buckhorn rear sight

Specifications

Item Number 534196137	UPC 048702001918
Caliber 357 Mag	Barrel Length 24"
Overall Length 41 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 12
Twist Rate 18 3/4"	Barrel Finish Brushed Polish
Chamber Finish Polished	Barrel Material Steel
Stock Material Black Walnut	Sling Swivel Studs None
Magazine Type Full-Length Tube	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,719.99

Item Number 534196124	UPC 048702001901
Caliber 44 Rem Mag	Barrel Length 24"
Overall Length 41 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 12
Twist Rate 26"	Barrel Finish Brushed Polish
Chamber Finish Polished	Barrel Material Steel
Stock Material Black Walnut	Sling Swivel Studs None
Magazine Type Full-Length Tube	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,719.99

Item Number 534196140	UPC 048702001895
Caliber 44-40 Win	Barrel Length 24"
Overall Length 41 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 12
Twist Rate 36"	Barrel Finish Brushed Polish
Chamber Finish Polished	Barrel Material Steel
Stock Material Black Walnut	Sling Swivel Studs None
Magazine Type Full-Length Tube	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,719.99

Item Number 534196141	UPC 048702001888
Caliber 45 Colt	Barrel Length 24"
Overall Length 41 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 12
Twist Rate 26"	Barrel Finish Brushed Polish
Chamber Finish Polished	Barrel Material Steel
Stock Material Black Walnut	Sling Swivel Studs None
Magazine Type Full-Length Tube	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,719.99
