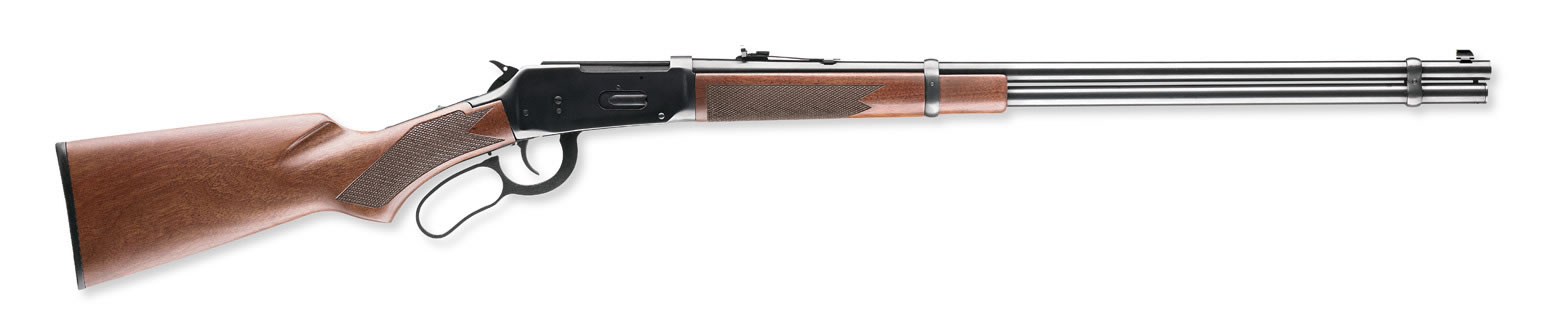

Model 94 Legacy 24"

These products are no longer in production.

Marksman configuration of the Model 94 lever-action carbine with curved grip, longer barrel, and extended forearm.

Overview

This Legacy distinguishes itself with a nicely finished American walnut stock with cut checkering and curved grip for a classic fit and smart handling. The stock provides a superb fit when using a scope. A longer forearm allows a more forward hand position to nicely balance the 24" barrel. A full-length magazine and top-tang safety improve the Legacy’s already great looks. Select from calibers 30-30 Win., 357 Mag., 44 Rem. Mag. or 45 Colt. Drilled and tapped for scope mounts. Hammer spur extension included.

Specifications

Item Number 534086114	UPC 048702141720
Caliber 30-30 Win	Barrel Length 24
Overall Length 42 1/8	Length of Pull 13 1/2
Drop at Comb 1 1/8	Drop at Heel 1 7/8
Weight 6 lbs 12 oz	Magazine Capacity 7
Twist Rate 12	Chamber Finish Polished
MSRP $497

Item Number 534086124	UPC 048702141744
Caliber 44 Rem Mag	Barrel Length 24
Overall Length 42 1/8	Length of Pull 13 1/2
Drop at Comb 1 1/8	Drop at Heel 1 7/8
Weight 6 lbs 12 oz	Magazine Capacity 12
Twist Rate 26	Chamber Finish Polished
Barrel Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $497

Item Number 534086137	UPC 048702141737
Caliber 357 Mag	Barrel Length 24
Overall Length 42 1/8	Length of Pull 13 1/2
Drop at Comb 1 1/8	Drop at Heel 1 7/8
Weight 6 lbs 12 oz	Magazine Capacity 12
Twist Rate 16	Chamber Finish Polished
MSRP $497

Item Number 534086141	UPC 048702141751
Caliber 45 Colt	Barrel Length 24
Overall Length 42 1/8	Length of Pull 13 1/2
Drop at Comb 1 1/8	Drop at Heel 1 7/8
Weight 6 lbs 12 oz	Magazine Capacity 12
Twist Rate 26	Chamber Finish Polished
MSRP $497
