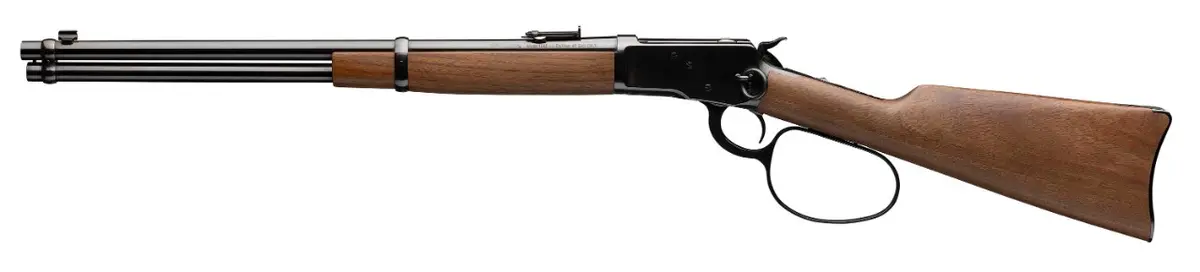

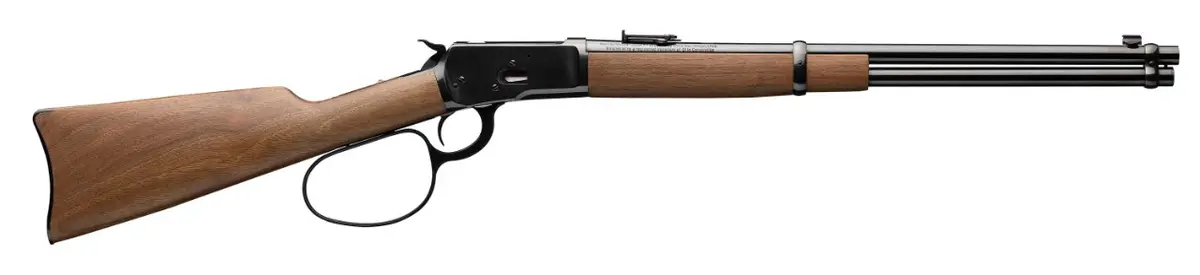

Model 1892 Large Loop Carbine

View Hi-Res Image

Iconic style large loop lever-action Model 1892, walnut carbine style buttstock and forearm, strap style buttplate, ladder rear sight. Top tang is drilled and tapped for optional peep sight.

FIND A DEALER TO PURCHASE

Overview

Saddle up with the Model 92 – the most famous of all the levers produced in the 1890s. This is why it is used by a huge number of competitors in cowboy action shooting events. It is slick, fast and extremely reliable. Designed for primarily pistol calibers, the recoil is manageable and is a fantastic gun for training new lever-action users. In the ranching days of the American West, the 92 was considered a premier rifle for looking out for the safety of livestock. In every way, it remains a premier rifle.

The large loop lever is often associated with the films of John Wayne or the TV Show The Rifleman. But it has a value that is more than movies and fun. The large loop is very functional when hunting or shooting while wearing gloves. And of course, it also looks great.

Model 1892 Large Loop Carbine Features

Walnut Stock Grade I with rich, satin finish, authentic straight-grip, contoured for better feel
Contoured steel carbine strap buttplate is quick to shoulder and protects buttstock from damage
Top-tang safety is easy to see and operate
Rebounding hammer provides added margin of safety

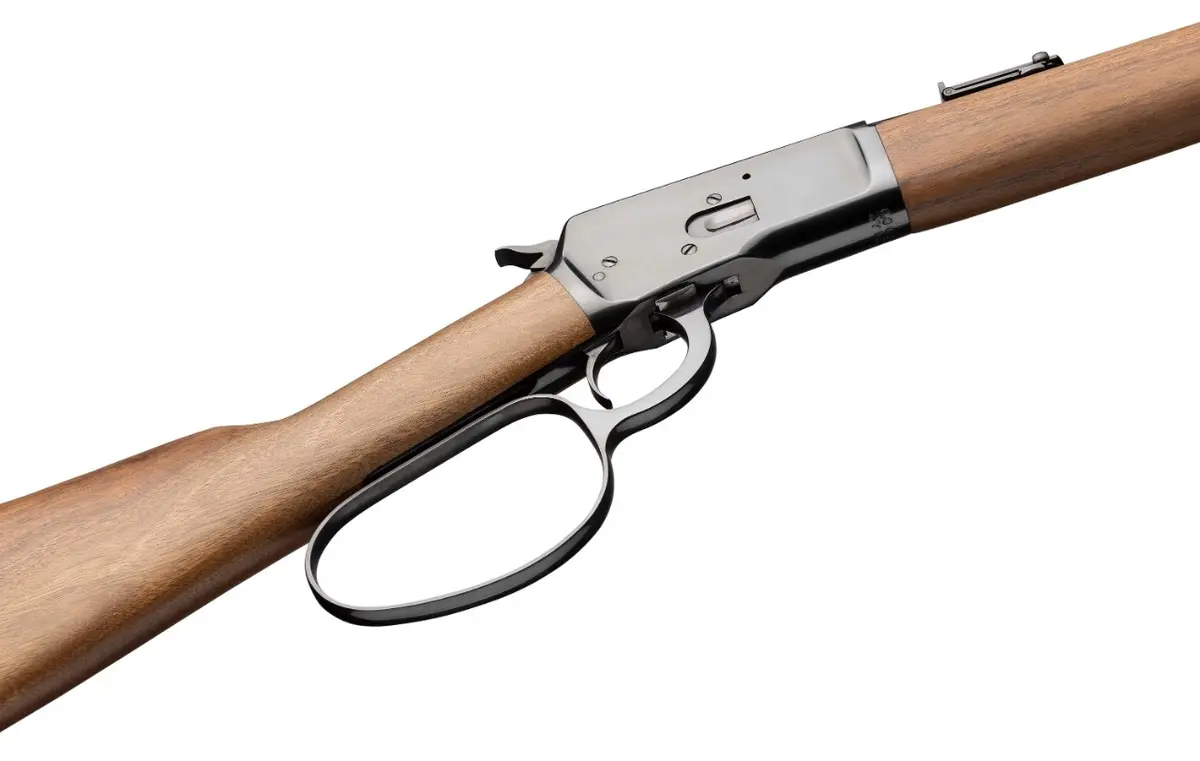

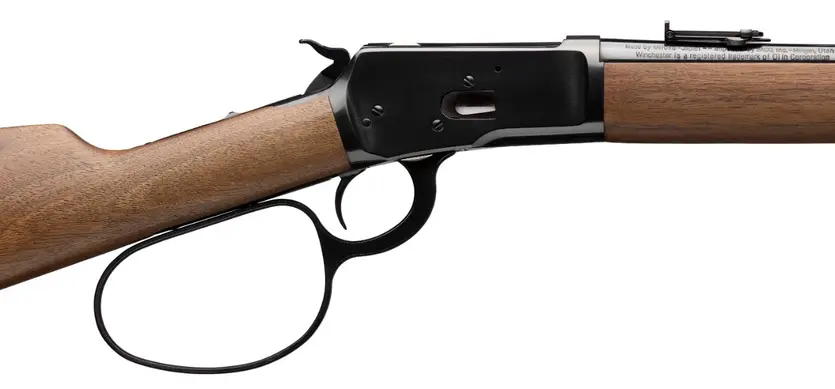

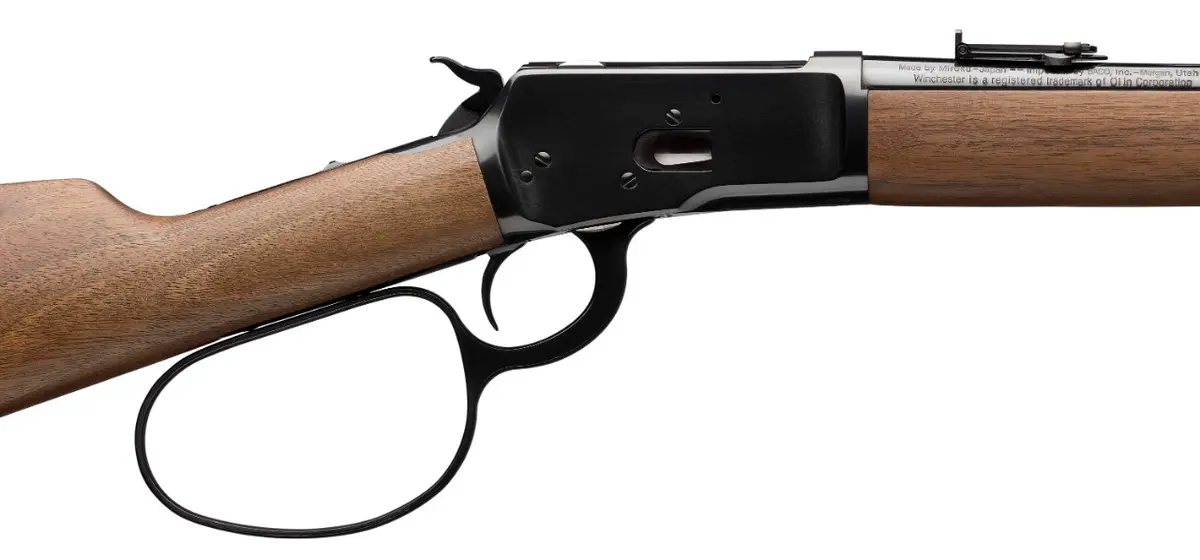

Large loop lever with radiused edges, large enough for use with gloves
Marble Arms^® front sight with brass bead for easier sighting
Adjustable rear sight gets you on target with any ammo
Saddle ring attaches rifle to the saddle
Steel loading gate for smoother loading
Barrel is button rifled with recessed crown to protect rifling for consistent bullet departure and ultimate accuracy

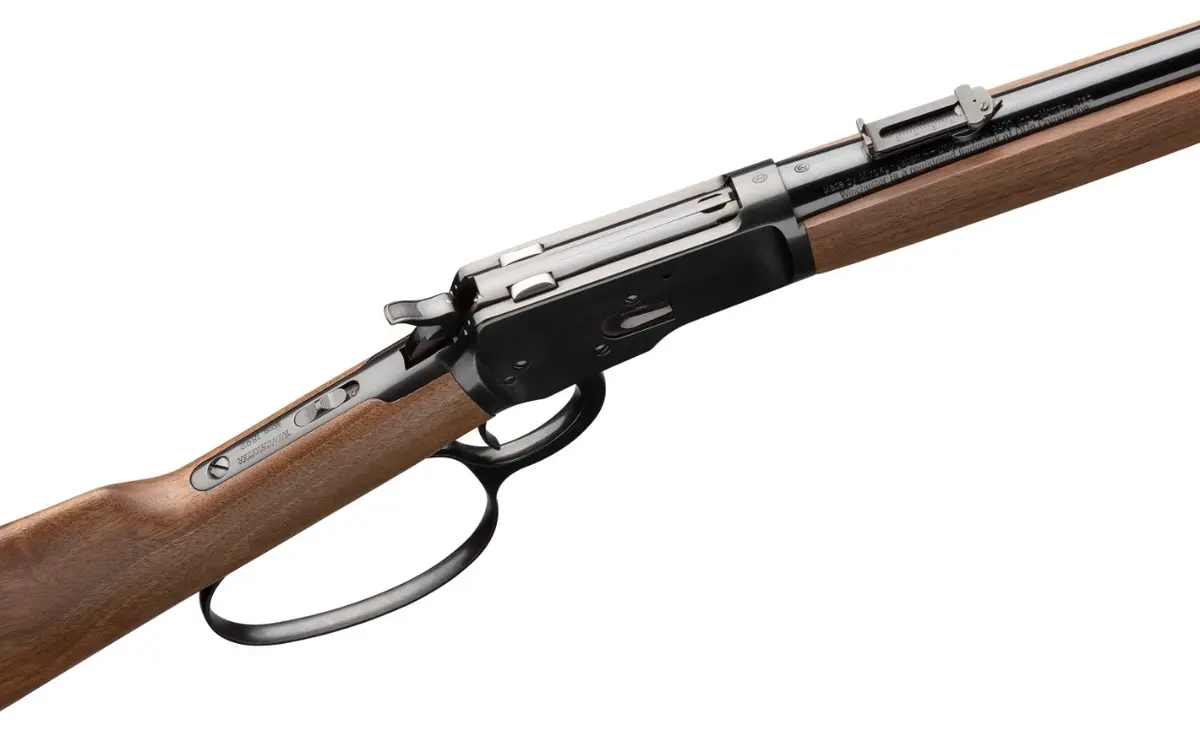

Top tang is drilled and tapped for optional peep sight

Specifications

Item Number 534190137	UPC 048702121135
Caliber 357 Mag	Barrel Length 20"
Overall Length 37 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 10
Twist Rate 18 3/4"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Carbine Metal Strap
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,389.99

Item Number 534190124	UPC 048702121081
Caliber 44 Rem Mag	Barrel Length 20"
Overall Length 37 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 10
Twist Rate 26"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Carbine Metal Strap
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,389.99

Item Number 534190140	UPC 048702121098
Caliber 44-40 Win	Barrel Length 20"
Overall Length 37 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 10
Twist Rate 36"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Carbine Metal Strap
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,389.99

Item Number 534190141	UPC 048702121074
Caliber 45 Colt	Barrel Length 20"
Overall Length 37 1/2"	Length of Pull 12 3/4"
Drop at Comb 1 1/8"	Drop at Heel 1 3/4"
Weight 6 lbs 0 oz	Magazine Capacity 10
Twist Rate 26"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Carbine Metal Strap
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope No	MSRP $1,389.99
