Model 94 Trails End Takedown | Lever-Action Rifle

Overview

The Winchester® Model 94^® is popular throughout the world, and today’s production utilizes the latest manufacturing technology to bring you some of the most accurate models ever produced. This model showcases John M. Browning’s original takedown design for a rifle that comes apart quickly for easy transporting just about anywhere.

The versatile Model 94 is perfect for hunting in thick brush for hogs and other fast-moving game. To handle bear and boar, the Trails End Takedown is also available in 450 Marlin. Select your caliber and get after it.

You can take down the Model 94 into two compact components – the barrel assembly and the stocked receiver assembly – then slip it into your backpack, wrap it in your bedroll, strap it on your ATV or tuck it behind the seat of your truck, boat or bush plane. Reassembly is easy. Put the two pieces together, give the end of the magazine tube a few turns and you have a full-length rifle with the same superb accuracy as the other models.

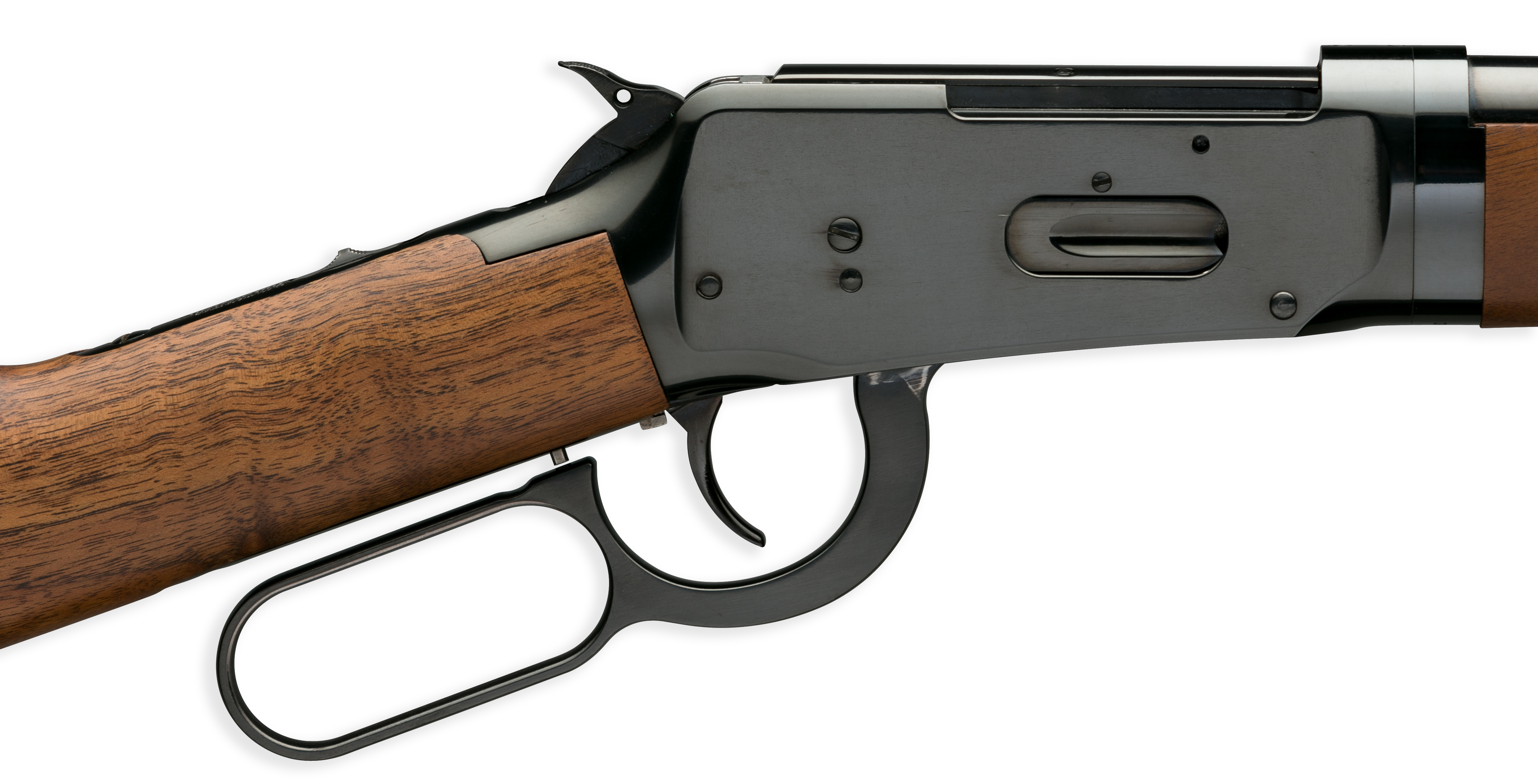

The hammer is drilled and tapped for knurled hammer spur extension (included) to aid in cocking and decocking the hammer when a scope is mounted. A Marble Arms^® front sight and adjustable semi-buckhorn rear sight get you on target quickly. The steel loading gate offers smoother loading. Articulated cartridge stop improves feeding reliability without damaging cartridges. The receiver is drilled and tapped for scope mounts to easily attach your favorite optics.

Model 94 Trails End Takedown Features

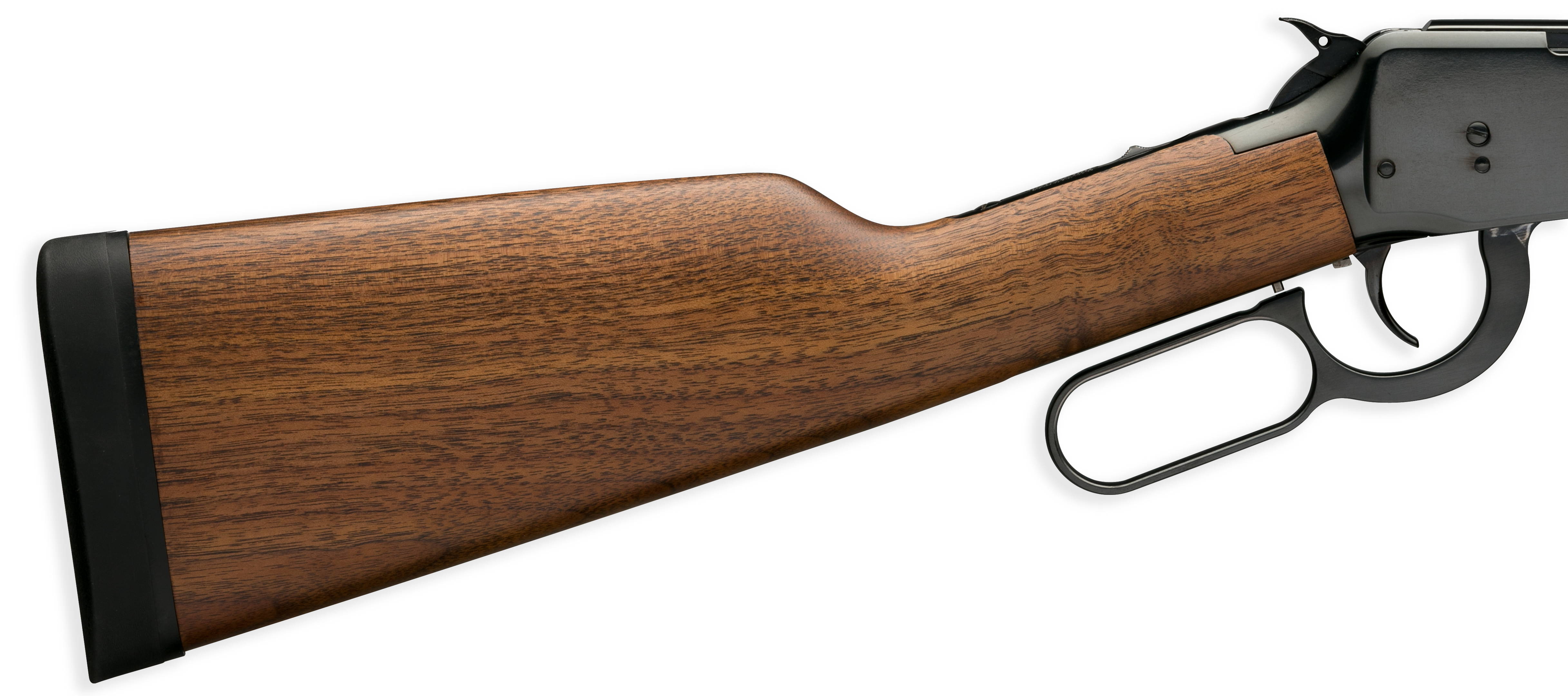

Walnut Stock with satin finish, authentic straight-grip styling
Classic rifle-style forearm with forearm cap
Traditional takedown mechanism
Triple-checked button rifled barrel
Round locking bolt trunnions
Bolt relief cut
Radiused lever edges
Hammer is drilled and tapped for a knurled hammer spur extension (included)
Marble Arms^® front sight and adjustable semi-buckhorn rear sight
Steel loading gate
Articulated cartridge stop
Drilled and tapped for optional scope mounts

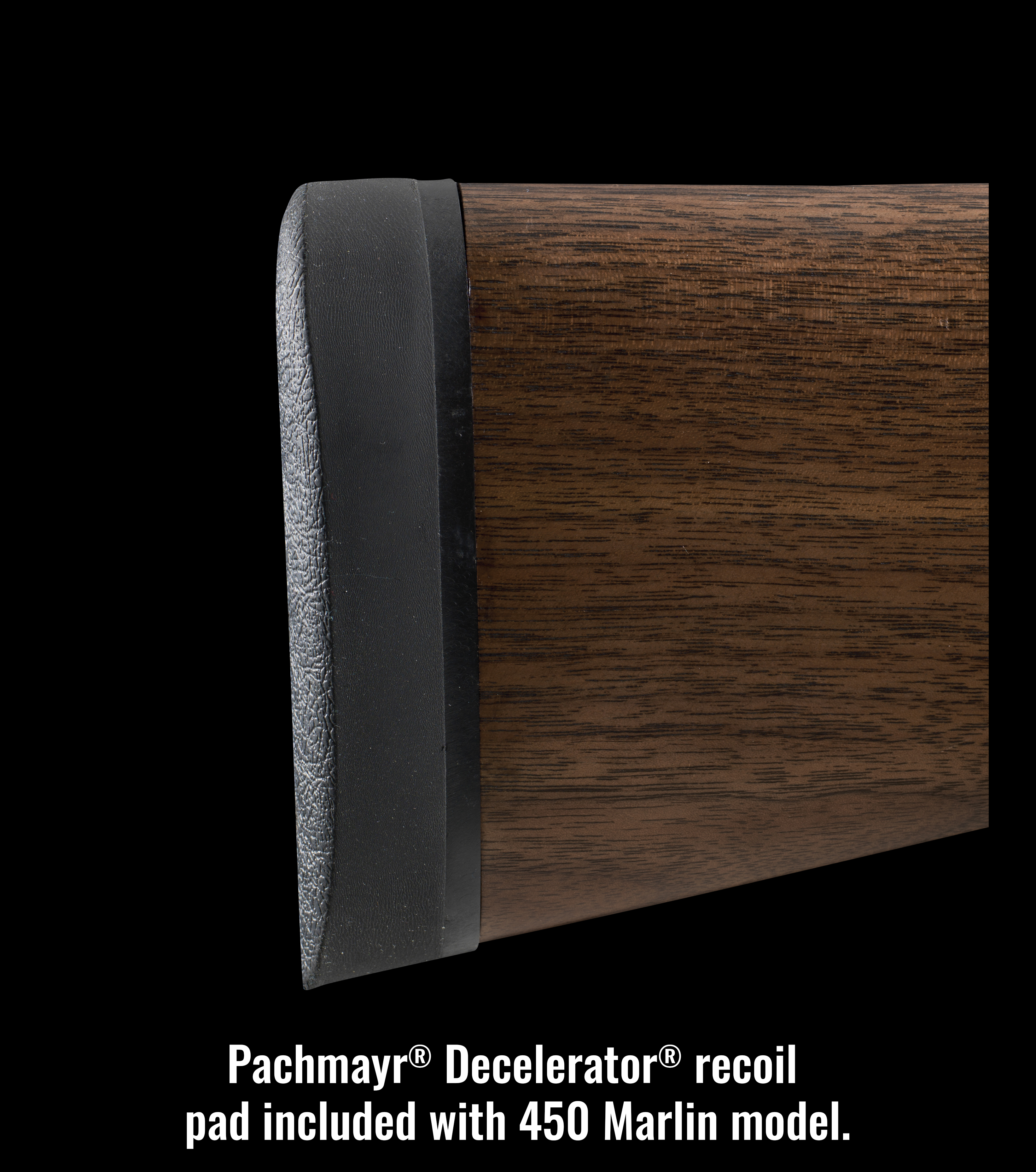

Pachmayr^® Decelerator^® recoil pad on 450 Marlin models

Specifications

Item Number 534191114	UPC 048702121715
Caliber 30-30 WIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 6
Twist Rate 12"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Polished Blued
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,719.99

Item Number 534191117	UPC 048702003851
Caliber 38-55 WIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 6
Twist Rate 15"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Polished Blued
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,719.99

Item Number 534191160	UPC 048702121722
Caliber 450 MARLIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 6
Twist Rate 20"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Pachmayr Decelerator
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Stainless	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,749.99
