Model 94 Short Rifle | Lever-Action Rifle

Overview

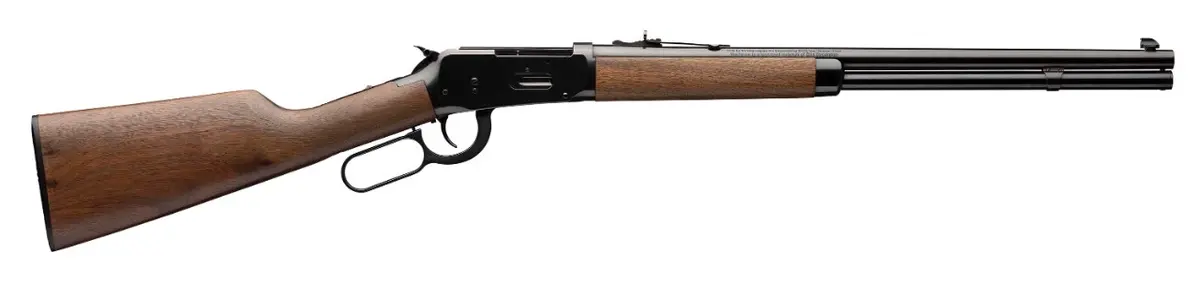

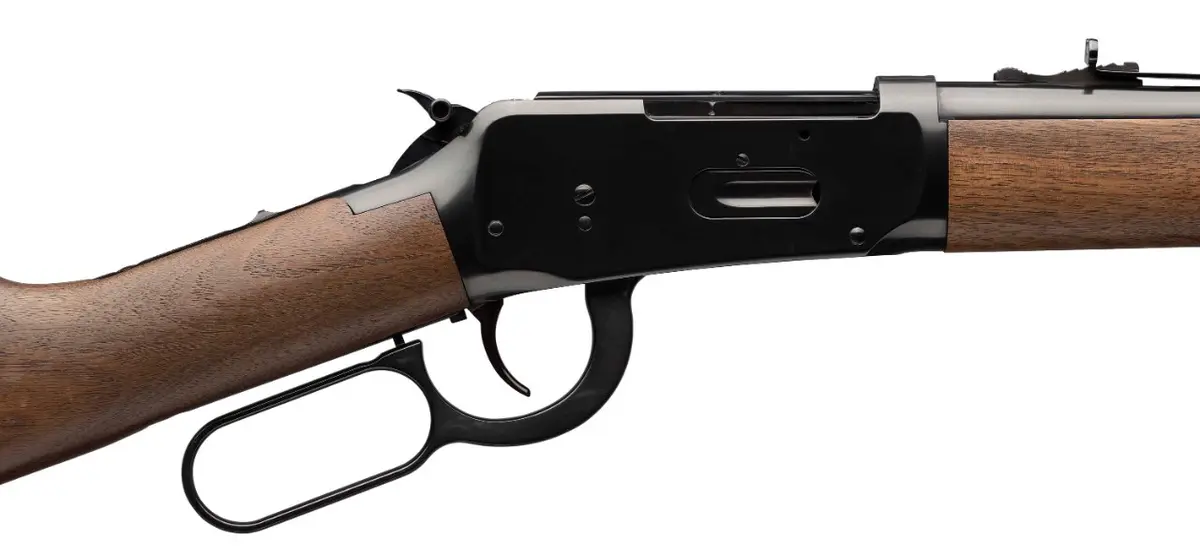

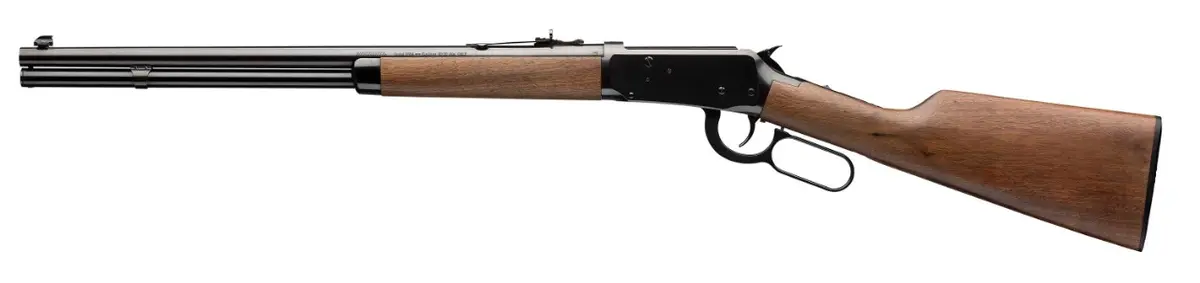

A favorite of many hunters and shooters, the Short Rifle configuration has always been fast to the shoulder, quick-swinging, lightweight and a pleasure to shoot. It was a favorite of the range rider who could snatch it from his saddle scabbard and fire faster than prairie lightning. The Winchester^® Model 94^® Short Rifle has a compact 20" round barrel that is button rifled and triple-checked for precision. The easy handling straight grip walnut stock has a satin finish and shotgun-style butt plate. It has a rifle-style forearm, black grip cap, and a full-length magazine. It’s drilled and tapped for scope mounts, and the hammer is also drilled and tapped for knurled hammer spur extension (included) to aid in cocking and decocking the hammer when a scope is mounted. The sights are traditional with a semi-buckhorn rear and a Marble Arms^® gold bead at the muzzle. To handle bear and boar, the Short Rifle is available in 450 Marlin. Even the top-tang safety is easy to see and operate, as is the rebounding hammer that provides an added margin of safety. With the Short Rifle Model 94, there’s a lot of fun waiting in the saddle, in the field or at the range.

If those features aren't enough for a second look, today's Model 94 also has round locking bolt trunnions that help ensure a smooth, quick lever throw. A bolt relief cut reduces hammer drag for smoother cocking and radiused lever edges give added protection to your fingers. The steel loading gate offers smoother loading and the articulated cartridge stop improves feeding reliability without damaging cartridges.

Model 94 Short Rifle Features

Walnut stock with satin finish, authentic straight-grip styling
Classic rifle-style forearm with forearm cap

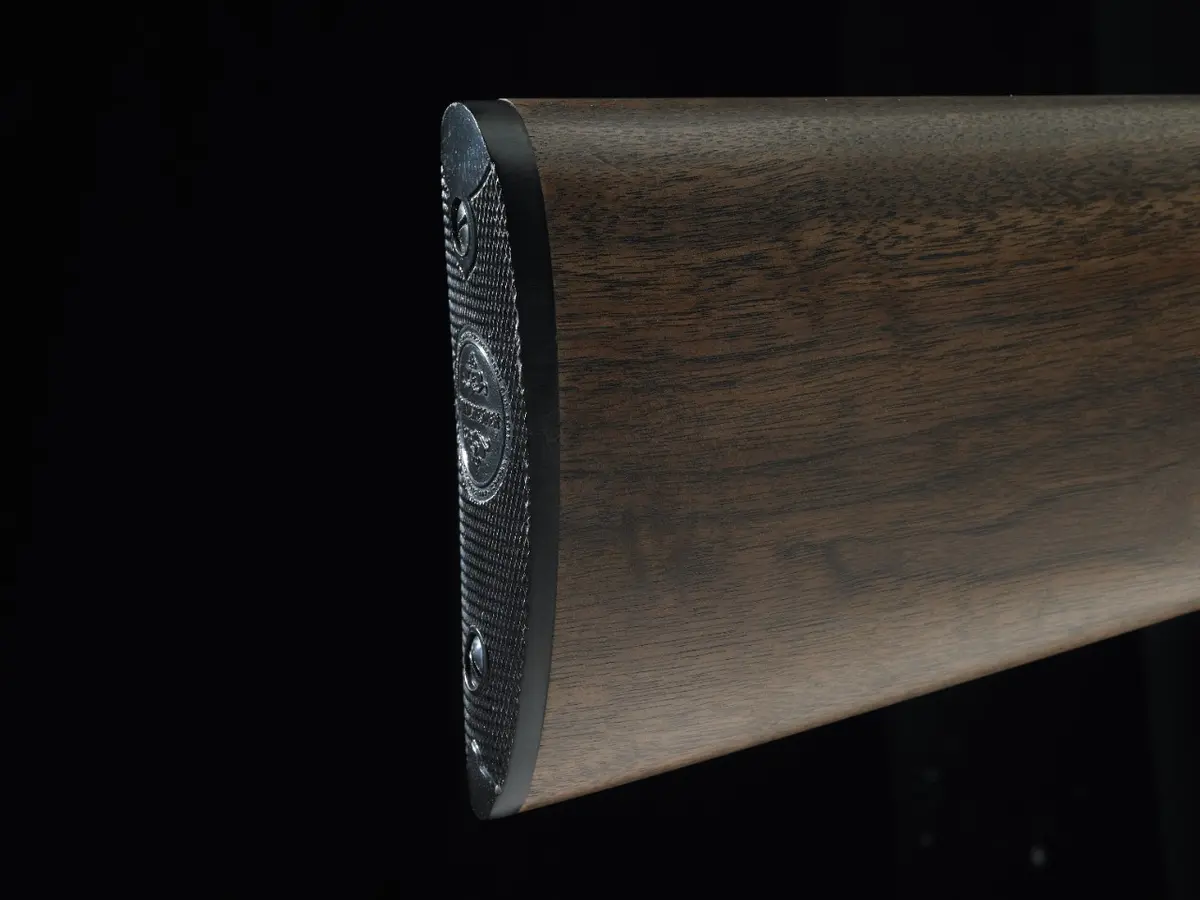

Shotgun style buttplate
Triple-checked button rifled barrel
Round locking bolt trunnions
Bolt relief cut
Radiused lever edges

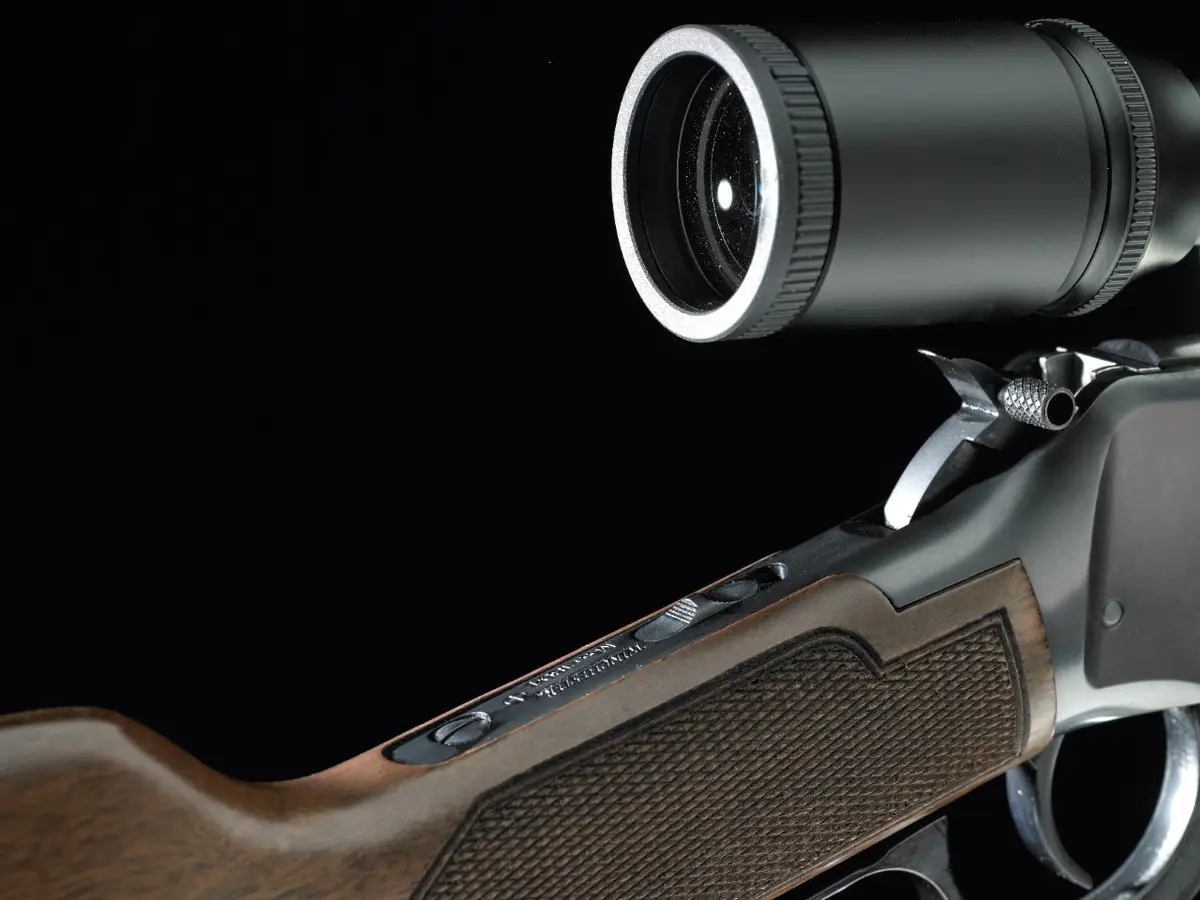

Hammer is drilled and tapped for a knurled hammer spur extension (included)
Marble Arms^® front sight and adjustable semi-buckhorn rear sight
Steel loading gate
Articulated cartridge stop
Drilled and tapped for optional scope mounts

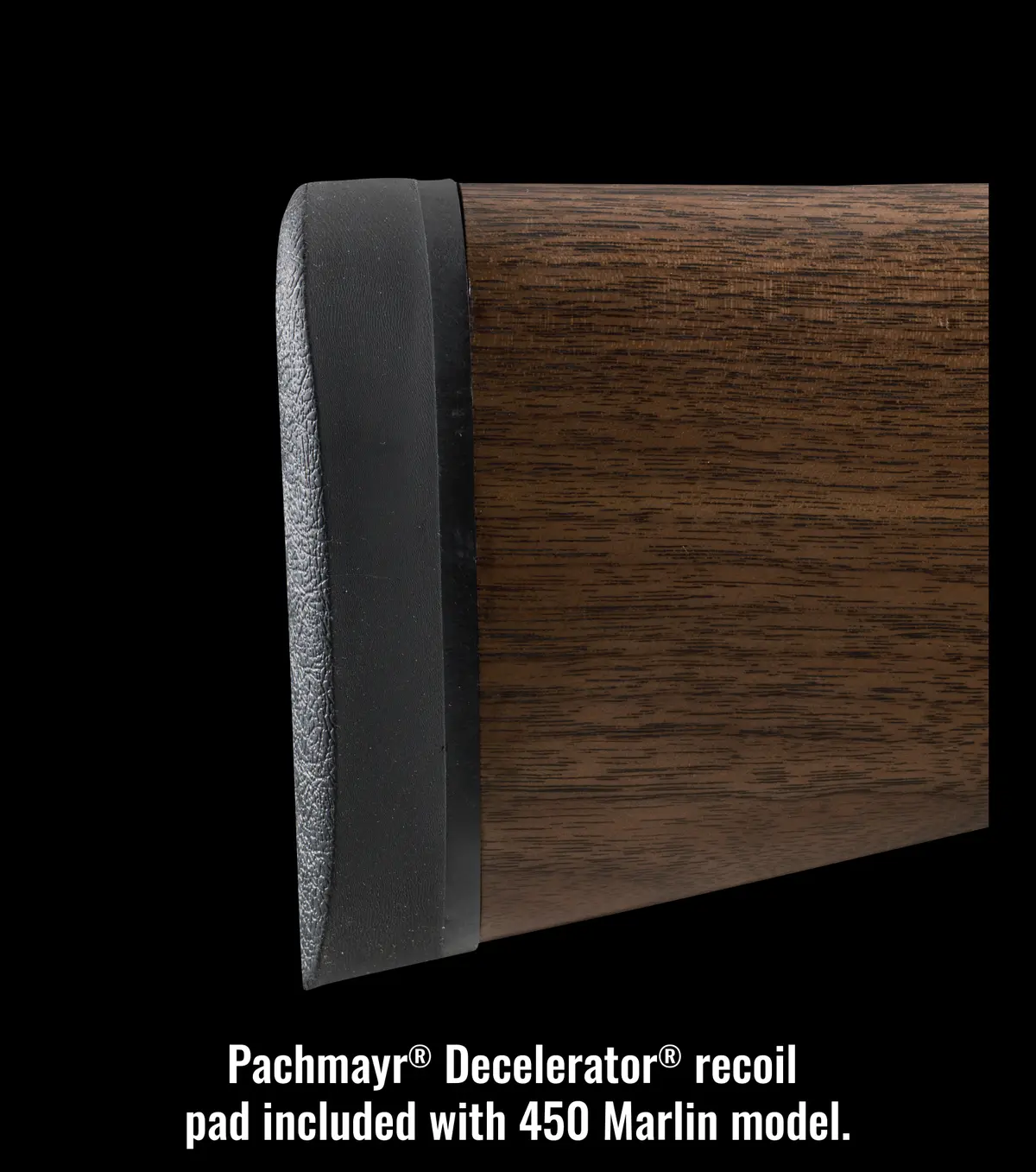

Pachmayr^® Decelerator^® recoil pad on 450 Marlin models

Specifications

Item Number 534174114	UPC 048702119583
Caliber 30-30 WIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 7
Twist Rate 12"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,449.99

Item Number 534174160	UPC 048702004766
Caliber 450 MARLIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 7
Twist Rate 20"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,449.99

Item Number 534174117	UPC 048702120091
Caliber 38-55 WIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 7
Twist Rate 15"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,449.99

Item Number 534174175	UPC 048702008696
Caliber 25-35 WIN	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 7
Twist Rate 8"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,229.99

Item Number 534174192	UPC 048702015670
Caliber 32 Win Special	Barrel Length 20"
Overall Length 38"	Length of Pull 13 1/2"
Drop at Comb 1 1/4"	Drop at Heel 1 3/4"
Weight 6 lbs 12 oz	Magazine Capacity 7
Twist Rate 16"	Barrel Finish Brushed Polish
Stock Finish Satin	Wood Grade Grade I
Receiver Finish Brushed Polish	Chamber Finish Polished
Barrel Material Steel	Barrel Contour Sporter
Stock Material Black Walnut	Recoil Pad Polymer
Pistol Grip Cap None	Checkering None
Sling Swivel Studs None	Receiver Material Steel
Trigger Finish Brushed Polish	Bolt Slide Finish Brushed Polish
Magazine Type Full-Length Tube	Trigger Material Steel
Trigger Guard Material Steel	Trigger Guard Engraving None
Drilled and Tapped for Scope Yes	MSRP $1,229.99
