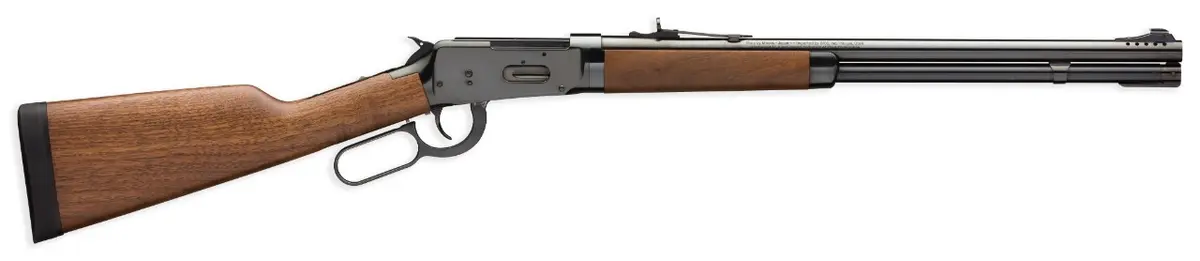

Model 94 Trails End Takedown
Model 94 Trails End Takedown
Quick takedown Model 94 lever-action rifle designed for compact carry in a pack or case. Marble Arms front sight and adjustable semi-buckhorn rear sight. Drilled and tapped for scope mounts.
Overview
Overview
The Winchester® Model 94® is popular throughout the world, and today’s production utilizes the latest manufacturing technology to bring you some of the most accurate models ever produced. This model showcases John M. Browning’s original takedown design for a rifle that comes apart quickly for easy transporting just about anywhere.
The versatile Model 94 is perfect for hunting in thick brush for hogs and other fast-moving game. To handle bear and boar, the Trails End Takedown is also available in 450 Marlin. Select your caliber and get after it.
You can take down the Model 94 into two compact components – the barrel assembly and the stocked receiver assembly – then slip it into your backpack, wrap it in your bedroll, strap it on your ATV or tuck it behind the seat of your truck, boat or bush plane. Reassembly is easy. Put the two pieces together, give the end of the magazine tube a few turns and you have a full-length rifle with the same superb accuracy as the other models.
The hammer is drilled and tapped for knurled hammer spur extension (included) to aid in cocking and decocking the hammer when a scope is mounted. A Marble Arms® front sight and adjustable semi-buckhorn rear sight get you on target quickly. The steel loading gate offers smoother loading. Articulated cartridge stop improves feeding reliability without damaging cartridges. The receiver is drilled and tapped for scope mounts to easily attach your favorite optics.
Model 94 Trails End Takedown Features
Model 94 Trails End Takedown Features
- Walnut Stock with satin finish, authentic straight-grip styling
- Classic rifle-style forearm with forearm cap
- Traditional takedown mechanism
- Triple-checked button rifled barrel
- Round locking bolt trunnions
- Bolt relief cut
- Radiused lever edges
- Hammer is drilled and tapped for a knurled hammer spur extension (included)
- Marble Arms® front sight and adjustable semi-buckhorn rear sight
- Steel loading gate
- Articulated cartridge stop
- Drilled and tapped for optional scope mounts
- Pachmayr® Decelerator® recoil pad on 450 Marlin models
Item Number 534191114 | UPC 048702121715 |
Caliber 30-30 WIN | Barrel Length 20" |
Overall Length 38" | Length of Pull 13 1/2" |
Drop at Comb 1 1/4" | Drop at Heel 1 3/4" |
Weight 6 lbs 12 oz | Magazine Capacity 6 |
Twist Rate 12" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Receiver Finish Brushed Polish | Chamber Finish Polished |
Barrel Material Steel | Barrel Contour Sporter |
Stock Material Black Walnut | Recoil Pad Polymer |
Pistol Grip Cap None | Checkering None |
Sling Swivel Studs None | Receiver Material Steel |
Trigger Finish Brushed Polish | Bolt Slide Finish Polished Blued |
Magazine Type Full-Length Tube | Trigger Material Steel |
Trigger Guard Material Steel | Trigger Guard Engraving None |
Drilled and Tapped for Scope Yes | MSRP $1,599.99 |
Item Number 534191117 | UPC 048702003851 |
Caliber 38-55 WIN | Barrel Length 20" |
Overall Length 38" | Length of Pull 13 1/2" |
Drop at Comb 1 1/4" | Drop at Heel 1 3/4" |
Weight 6 lbs 12 oz | Magazine Capacity 6 |
Twist Rate 15" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Receiver Finish Brushed Polish | Chamber Finish Polished |
Barrel Material Steel | Barrel Contour Sporter |
Stock Material Black Walnut | Recoil Pad Polymer |
Pistol Grip Cap None | Checkering None |
Sling Swivel Studs None | Receiver Material Steel |
Trigger Finish Brushed Polish | Bolt Slide Finish Polished Blued |
Magazine Type Full-Length Tube | Trigger Material Steel |
Trigger Guard Material Steel | Trigger Guard Engraving None |
Drilled and Tapped for Scope Yes | MSRP $1,599.99 |
Item Number 534191160 | UPC 048702121722 |
Caliber 450 MARLIN | Barrel Length 20" |
Overall Length 38" | Length of Pull 13 1/2" |
Drop at Comb 1 1/4" | Drop at Heel 1 3/4" |
Weight 6 lbs 12 oz | Magazine Capacity 6 |
Twist Rate 20" | Barrel Finish Brushed Polish |
Stock Finish Satin | Wood Grade Grade I |
Receiver Finish Brushed Polish | Chamber Finish Polished |
Barrel Material Steel | Barrel Contour Sporter |
Stock Material Black Walnut | Recoil Pad Pachmayr Decelerator |
Pistol Grip Cap None | Checkering None |
Sling Swivel Studs None | Receiver Material Steel |
Trigger Finish Brushed Polish | Bolt Slide Finish Brushed Polish |
Magazine Type Full-Length Tube | Trigger Material Steel |
Trigger Guard Material Stainless | Trigger Guard Engraving None |
Drilled and Tapped for Scope Yes | MSRP $1,589.99 |
