Ranger

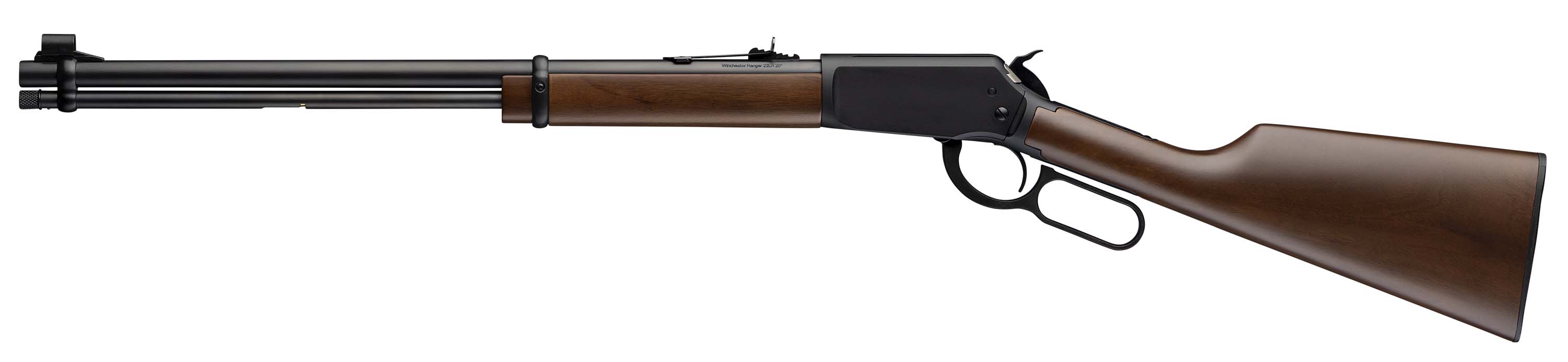

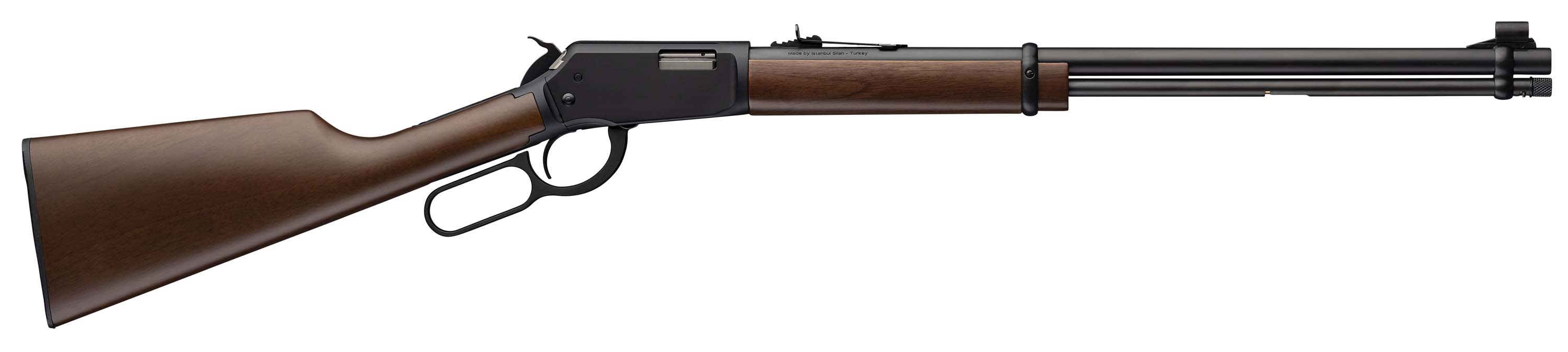

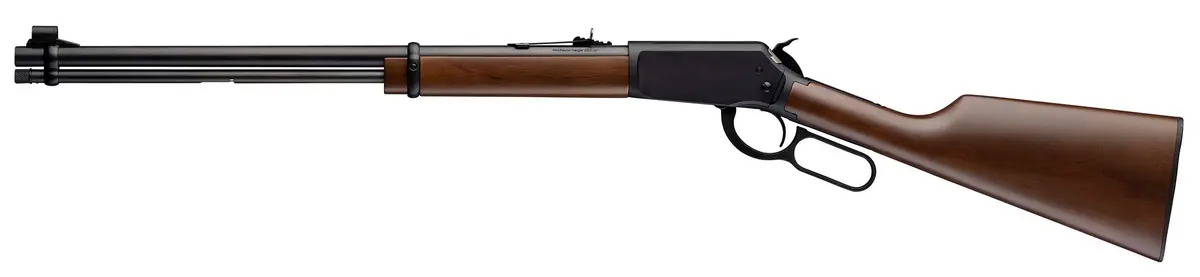

The Range has a new Ranger. The new lever-action Ranger 22 LR rimfire rifle features a precision-machined aluminum receiver, satin finished walnut stock, and adjustable rear sight. The action is engineered with light operating forces for easy cycling. Easy takedown for storage or cleaning.

FIND A DEALER TO PURCHASE

Overview

From the lever-action rifle brand comes the newest lever-action rimfire — the new Winchester Ranger. This nimble, slick cycling 22 LR rifle is loaded with features and designed to be equally adept in the field hunting rabbits and squirrels as it is making short work of tin cans and punching paper at the shooting range.

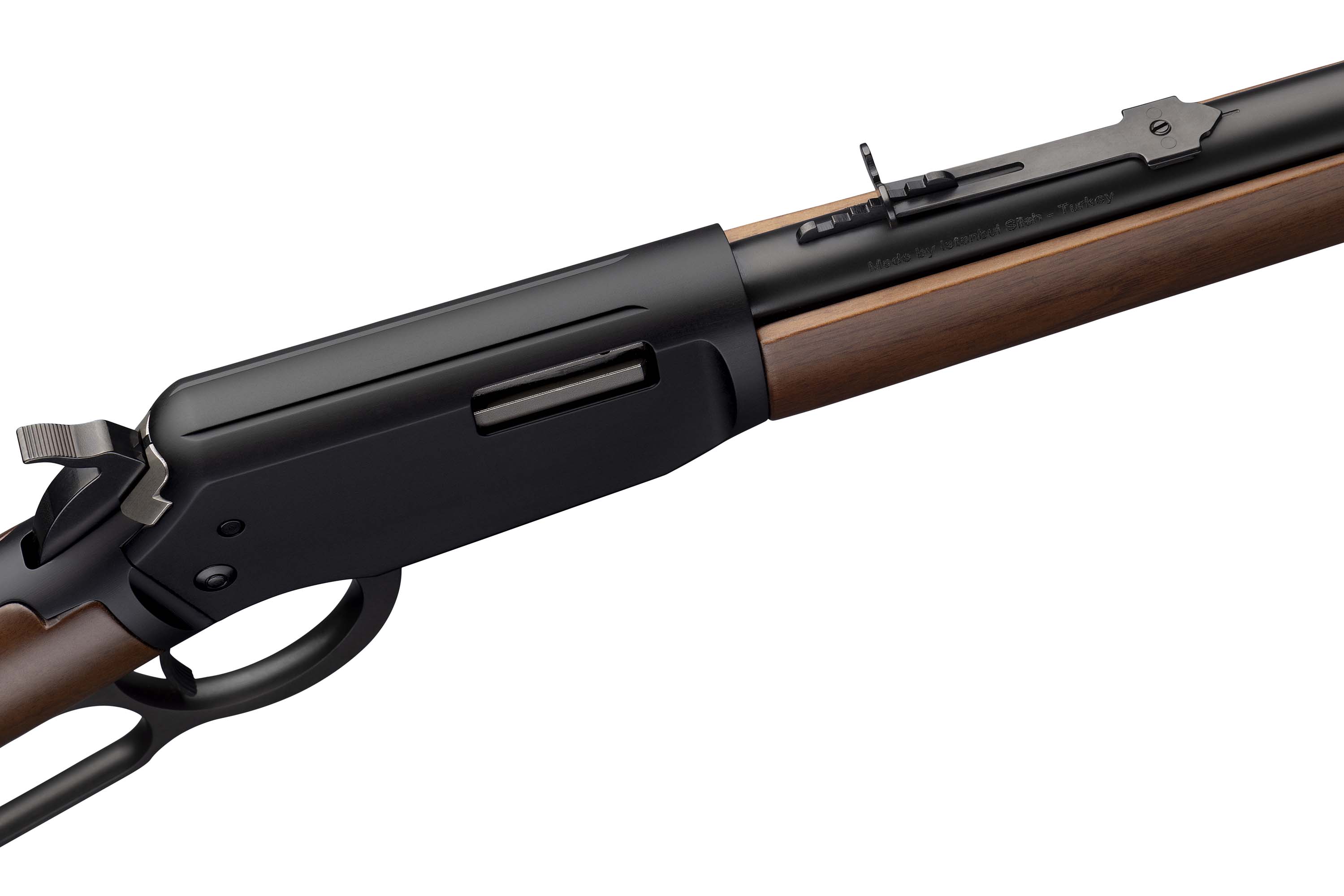

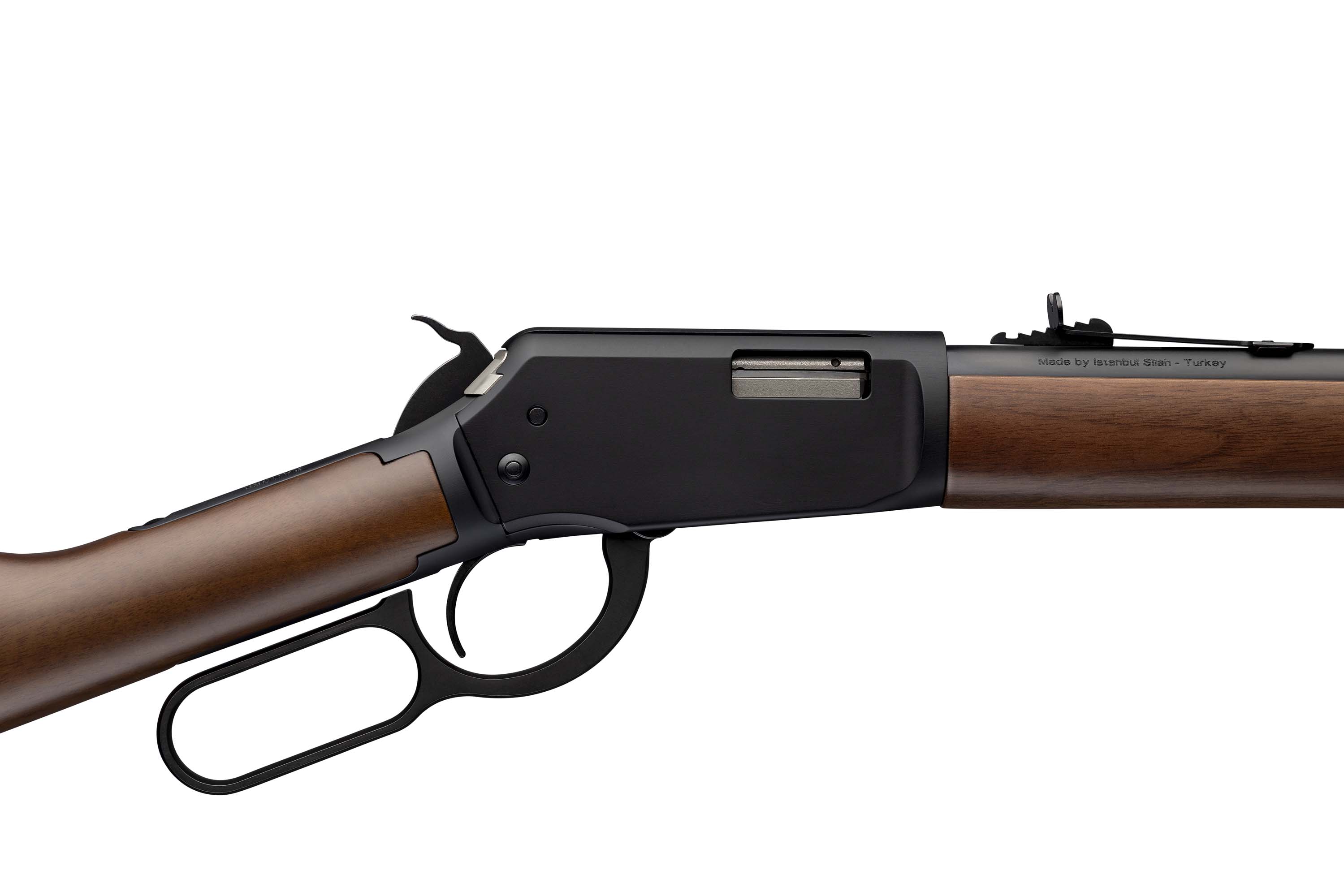

What makes the Ranger different is the receiver, which is precision machined from a billet of solid aluminum and durably black anodized. The receiver is lightweight and contributes to the balanced feel of the rifle between the hands. It's also strong and the precision construction helps ensure longevity. The top of the receiver is grooved to accept optics mounts.

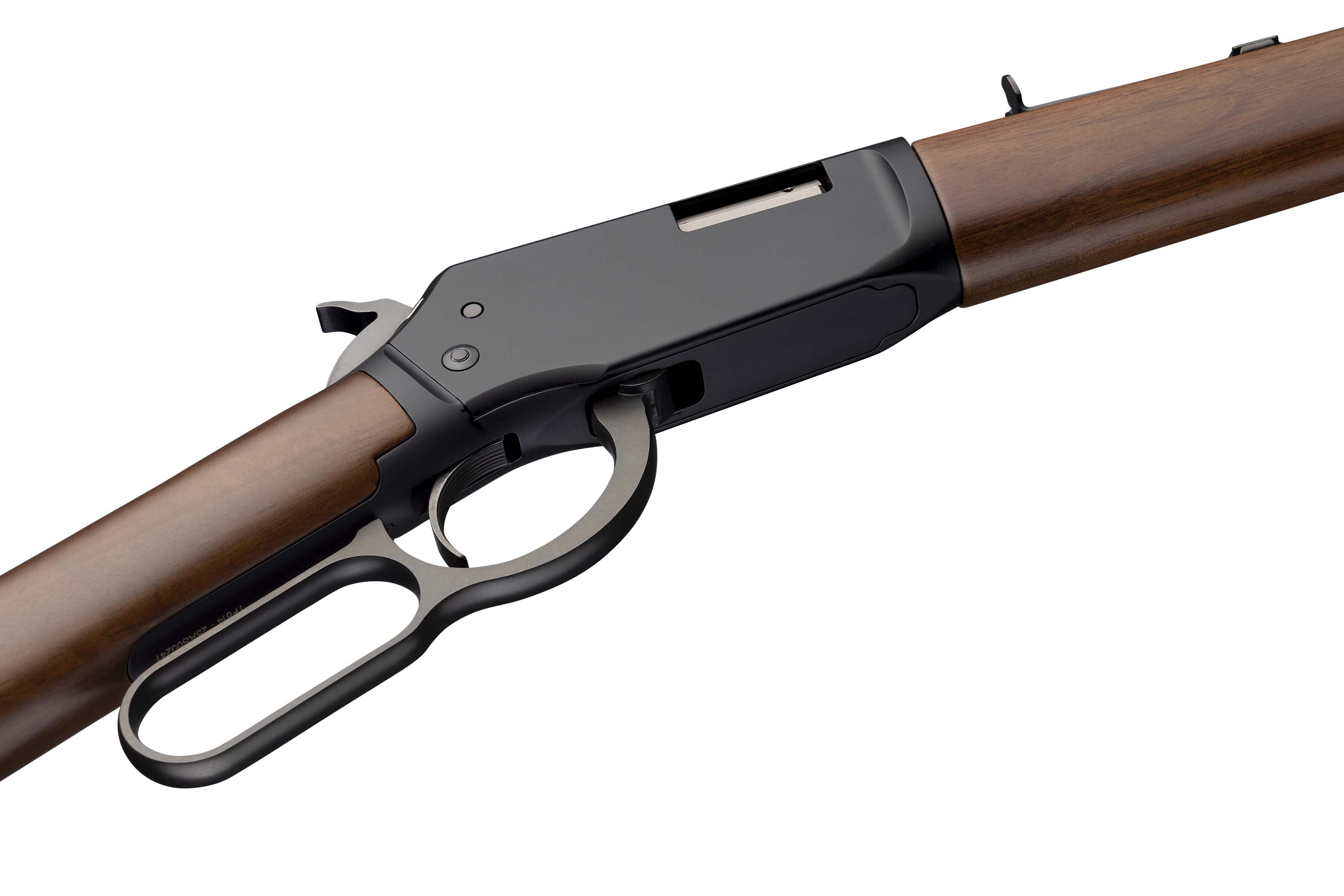

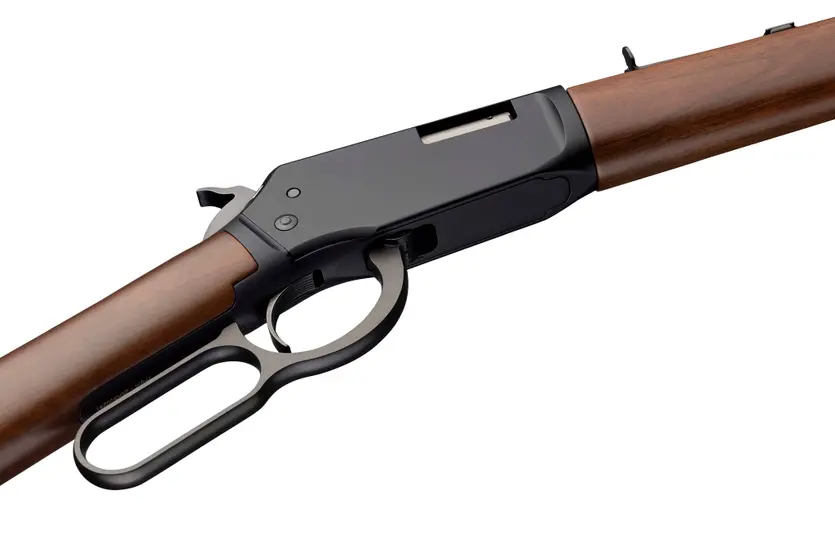

Inside, the action has been carefully developed with light operating forces and a sure feel that make it easy for new shooters to confidently operate the action and pure bliss for seasoned hands to rapidly cycle and fire until the 15-round tubular magazine runs dry. The trigger is adjustable for overtravel to match the feel to suit your taste.

The high-quality, chromoly steel barrel is produced right alongside the barrels found on our accurate Wildcat and Xpert rimfire rifles. It is precision bored and button rifled to provide year after year of accurate performance.

The Ranger can be separated in two by removing one action screw. This allows you to easily clean the action and run a patch through the barrel from the chamber end to prevent damage to the rifling. The rifling is also protected by a target-style muzzle crown.

In keeping with the traditional look of lever-actions of days gone by, the Ranger wears a straight-grip Walnut stock with a durable satin finish. The 13" length of pull is comfortable for a wide range of users. Up front, the carbine-style handguard is secured with the traditional steel barrel band.

The range has a new Ranger. Coming in 2024.

Ranger Features

Precision machined billet aluminum receiver with grooves for optic mounts
20.5" precision button-rifled chromoly steel barrel with a recessed target-style crown
Walnut stock with straight grip styling and satin finish
Classic carbine-style forearm with barrel band
Hooded front sight and adjustable rear sight
Single screw takedown for cleaning or compact storage

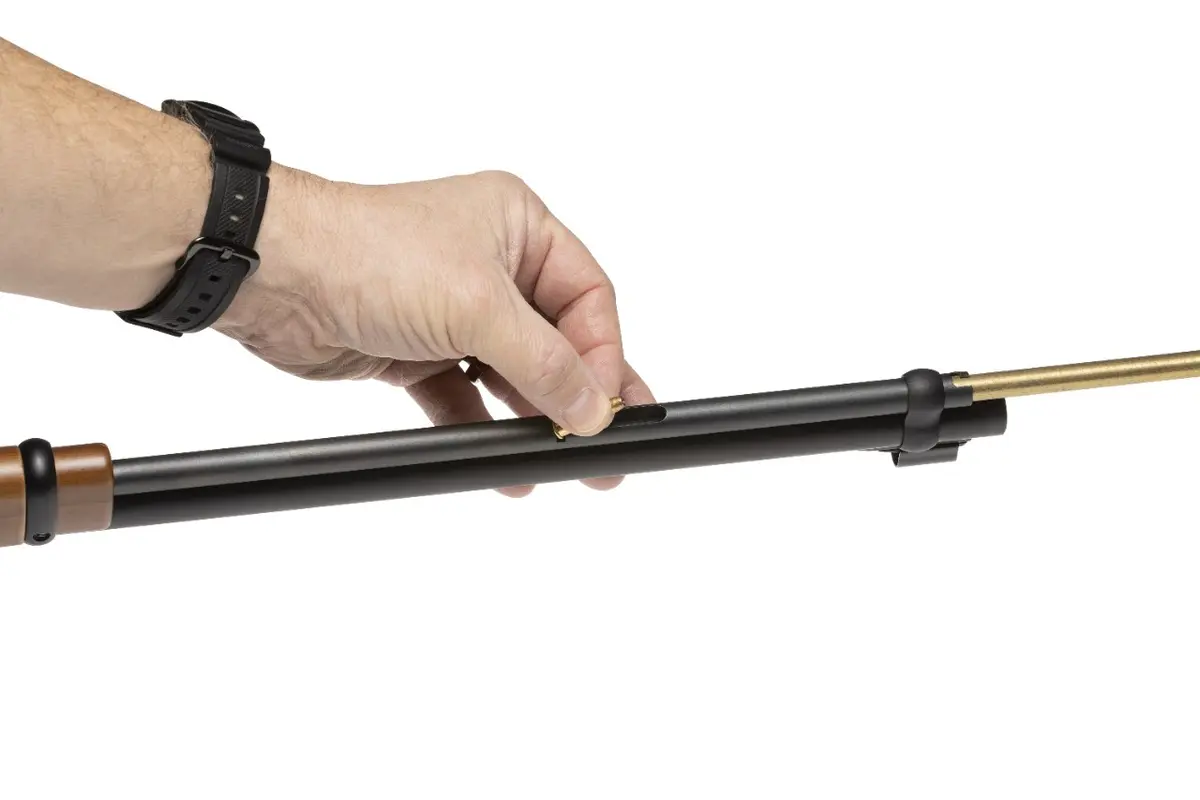

Tubular magazine
Trigger is adjustable for overtravel

Specifications

Item Number 524200102	UPC 048702023958
Caliber 22 LR	Barrel Length 20"
Overall Length 37 3/4"	Length of Pull 13"
Drop at Comb 1 1/4"	Drop at Heel 2"
Weight 5 lbs 4 oz	Magazine Capacity 15
Twist Rate 16"	Barrel Finish Matte Black
Stock Finish Satin Oil	Wood Grade Grade I
Receiver Finish Matte Black	Barrel Material Steel
Barrel Contour Sporter	Recoil Pad Plastic Butt Plate
Checkering Cut	Sling Swivel Studs None
Receiver Material Aluminum Alloy	Trigger Finish Matte Black
Bolt Slide Finish Nickel	Magazine Type Tubular
Trigger Material Steel	Trigger Guard Material Steel
Trigger Guard Engraving None	Drilled and Tapped for Scope Grooved
MSRP $449.99
